Injection Pump GN-E5

Geh zurück

The new Filoform injection pumps are used to pump the resin under pressure (±2 Bar) into injection joints. The injection pump has a continuously variable piston displacement enabling an optimal flow of the resin into the joint.

Produktblatt herunterladen

**New model type GN-E5**

  • Suitable for resin packages type B and C
  • Self-centering piston. Avoids piston seizure
  • Fold-out handle for piston rod retraction
  • Cylinder and cover with a PTFE coating thus avoiding adhesion of the resin
  • Ergonomic hand grip
  • 6 month warranty
Weitere Informationen
Zusätzliche Informationen

Recommended use

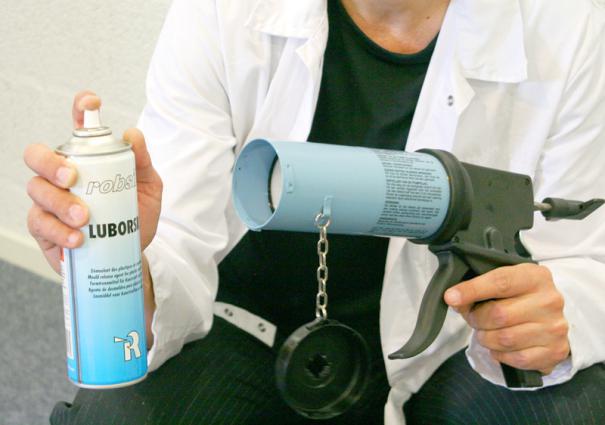

In order to achieve a proper filling of the cable joint, allow the resin to flow into the injection joint with each pumping stroke. For a long pump life, clean the piston and the interior of the cylinder once a week and apply Luborsil silicone lubricant (Filoform 80800)

Download: Injection pump instructions

onderhoud inspuitpomp

Home page product list Keine
Produkte anfordern
Grouped product items
Artikelnr. Artikelname

Geben Sie die Mengen ein, die Sie bestellen / anfordern möchten.

80397 Injection gun GN-E5 with ball bearing mechanism Bestelleinheit per piece
